LTV BGM-110

The ZBGM-110A was one of the two finalists in the U.S. Navy's SLCM (Submarine-Launched Cruise Missile) competition of 1974/76. The other one was the General Dynamics ZBGM-109A, q.v. for further details about the SLCM program. The first attempt in February 1976 to launch a YBGM-110A prototype from a torpedo tube failed because of a tube malfunction, and on the second attempt, the missile's wing failed to deploy. Because the YBGM-109A had performed flawlessly on two launches, and was the less risky overall design, the U.S. Navy declared the BGM-109 the winner of the SLCM competition in March 1976, thus ending the BGM-110 development.

Photo: Vought

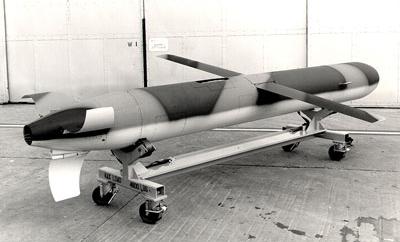

ZBGM-110A


The YBGM-110A was powered by a Teledyne CAE Model 471-11DX turbofan engine and a solid-propellant rocket booster for launch. An unusual feature was its one-piece fiber-glass wing, which was stored longitudinally in the fuselage, and pivoted through 90° to protrude through slots high on the fuselage sides. The tail surfaces were three curved fins, which lay flush on the round fuselage before deployment.

Photo: Vought

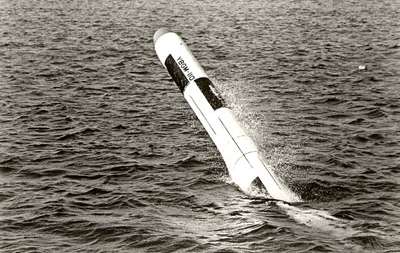

YBGM-110A


Before the BGM-110 development program was cancelled, the designations YBGM-110B (for an anti-ship missile, equivalent in purpose to the BGM-109B) and YAGM-110A (for an ALCM version) had been reserved for projected variants.

Specifications

Note: Data given by several sources show slight variations. Figures given below may therefore be inaccurate!

Data for YBGM-110A:

Length5.43 m (17 ft 10 in) (w/o booster)
6.25 m (20 ft 6 in) (incl. booster)
Wingspan3.20 m (10 ft 6 in)
Diameter53 cm (21 in)
Weight?
SpeedMach 0.7
Range> 2400 km (1500 miles)
PropulsionTeledyne CAE Model 471-11DX turbofan
Booster: Solid-propellant rocket
WarheadW-80-0 thermonuclear (5-200 kT)
