Sender

Copyright © 2004 Andreas Parsch

Naval Research Lab Sender

The Sender (Self-Navigating Drone, Expendable/Recoverable) multi-purpose mini-UAV was developed and tested by the Naval Research Laboratory between 1992 and 1997.

Sender could be launched either by a bungee cord, a catapult, a booster rocket or from an aircraft. Powered by an electric motor, it could cruise at 93 km/h (57 mph) for up to two hours and was recovered by a belly skid landing. Operational range was 93 km (50 nm) and normal operational altitude was about 300 m (1000 ft). The UAV was equipped with a GPS navigation system, and waypoints could be preprogrammed and updated in flight using a hand-held computer. The UAV could be quickly dismantled and reassembled, and the whole system was completely man-portable.

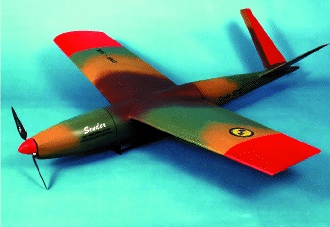

Photo: Institute for National Strategic Studies
Sender


At least 20 Sender UAVs were built and used to demonstrate a variety of different payloads weighing up to 1.1 kg (2.5 lb). These included a daylight CCD TV camera, a chemical/biological agent sampler and a tactical jammer.

Specifications

Data for Sender:

Length1.2 m (4 ft)
Wingspan1.2 m (4 ft)
Height30 cm (12 in)
Weight4.5 kg (10 lb)
Speedmax: 167 km/h (103 mph); cruise: 93 km/h (57 mph)
Ceiling1640 m (5000 ft)
Range93 km (50 nm)
Endurance2 h
PropulsionAveox electric motor; 300 W

Main Sources

[1] Kenneth Munson (ed.): "Jane's Unmanned Aerial Vehicles and Targets, Issue 15", Jane's, 2000
