Lockheed Martin Athena

The Athena launcher (initially known as Lockheed Martin Launch Vehicle) is a light launcher being offered in three versions. The Athena 1 version consisted of three stages and was capable of placing 794 kg into a low-Earth orbit. The vehicle had a length of 19.81 m.

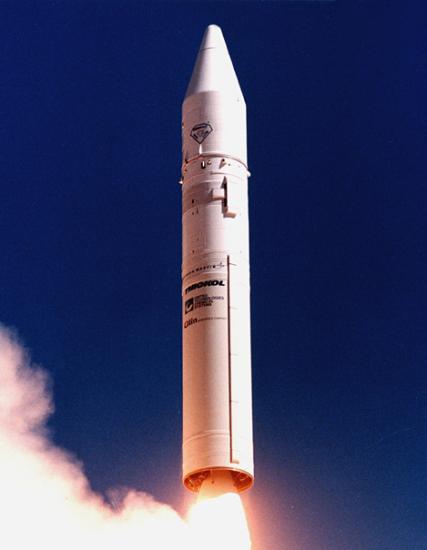

Photo: Lockheed Martin
Athena 1


Stage Length Diameter Engine Fuel Thrust
18.81 m2.36 m1 Thiokol Castor 120solid 1,553,225 N
23.15 m2.34 m1 UTC Orbis 21Dsolid 183,015 N
31.01 m2.34 m4 Primex MR-107hydrazine 890 N

Specifications for Athena 1


The four stage Athena 2 version, which had a length of 30.48 m, had an additional stage powered by a Castor 120 inserted between the first and second stage of the Athena 1. The Athena 2 is capable of placing a 1896 kg payload into a low-Earth orbit.

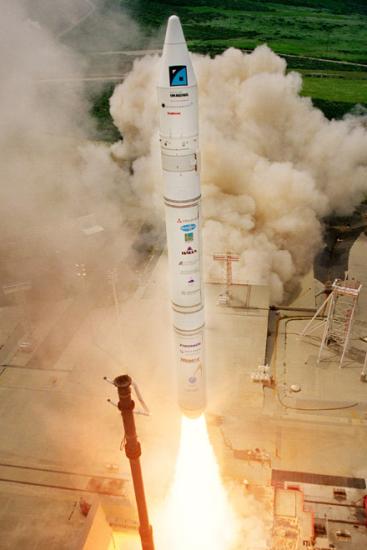

Photo: Lockheed Martin
Athena 2


Stage Length Diameter Engine Fuel Thrust
18.81 m2.36 m1 Thiokol Castor 120solid 1,553,225 N
28.81 m2.36 m1 Thiokol Castor 120solid 1,553,225 N
33.15 m2.34 m1 UTC Orbis 21Dsolid 183,015 N
41.01 m2.34 m4 Primex MR-107hydrazine 890 N

Specifications for Athena 2


A final version, Athena 3 would receive two to six Castor 4 strap-on boosters, providing it with a 5000 kg launch capability. The first flight of an Athena was on 15 August 1995 and as at 31 December 2002 seven launches took place of which two failed.
